Class 0 Rubber Insulating Sleeves | NOVAX®
| Description / Size | A | B | C | D |
| Small, Sm | 616mm (24 ¼ in.) | 384mm (15 ⅛ in.) | 317mm (12 ½ in.) | 146mm (5 ¾ in.) |
| Regular, Rg | 673mm (26 ½ in.) | 394mm (15 ½ in.) | 311mm (12 ¼ in.) | 146mm (5 ¾ in.) |
| Large, Lg | 705mm (27 ¾ in.) | 406mm (16 in.) | 327mm (12 ⅞ in.) | 175mm (6 ⅞ in.) |
| Extra Large, Xlg | 749mm (29 ½ in.) | 445mm (17 ½ in.) | 327mm (12 ⅞ in.) | 178mm (7 in.) |
| Tolerance | ± 13mm (± ½ in.) | Min. allowable length | ±13mm (± ½ in.) | ± 6mm (± ¼ in.) |
Description
Class 0 Rubber Insulating Sleeves | NOVAX®

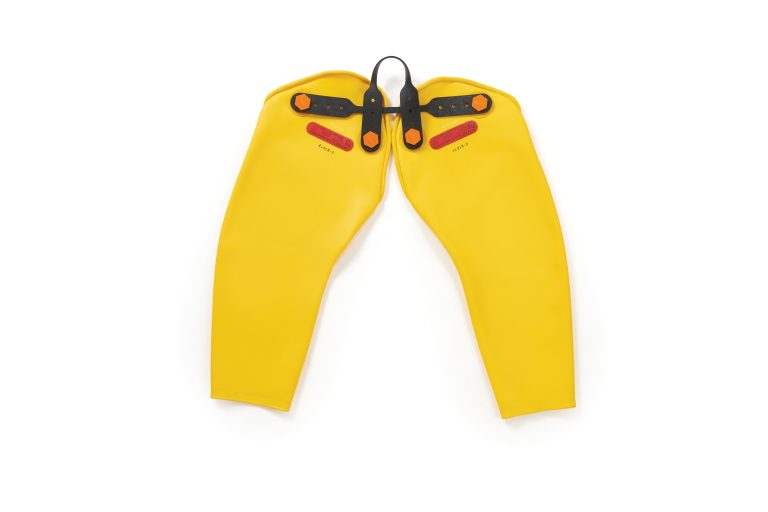

Class 0 Rubber Insulating Sleeves | NOVAX® – Curved Elbow Style provide dependable arm protection for electricians, linemen, and utility professionals working with live electrical equipment. Designed for ergonomic comfort, these sleeves ensure safety while allowing flexibility and ease of movement.
These sleeves protect against voltages up to 1,000V AC, and are rigorously tested to meet ASTM D1051 and international standards.
Benefits
- Class 0 electrical protection for up to 1,000V AC
- Curved elbow style for enhanced comfort and extended coverage
- Single-color yellow for high visibility and compliance
- Durable natural rubber construction for long-lasting protection
- Certified to ASTM D1051
- NOVAX® sleeves are Type 1 – Non-Ozone Resistance
Recommended Use
- Substation maintenance and utility line work
- Industrial electrical system handling
- Situations where visibility and safety compliance are critical
