Class 1 Rubber Insulating Sleeves | NOVAX®

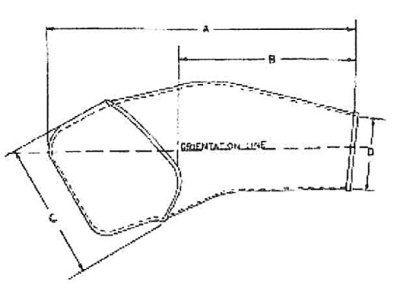

| Sizes | A | B | C | D |
|---|---|---|---|---|
| Small, Sm | 616mm (24 ¼ in.) | 384mm (15 ⅛ in.) | 317mm (12 ½ in.) | 146mm (5 ¾ in.) |
| Regular, Rg | 673mm (26 ½ in.) | 394mm (15 ½ in.) | 311mm (12 ¼ in.) | 146mm (5 ¾ in.) |
| Large, Lg | 705mm (27 ¾ in.) | 406mm (16 in.) | 327mm (12 ⅞ in.) | 175mm (6 ⅞ in.) |
| Extra Large, Xlg | 749mm (29 ½ in.) | 445mm (17 ½ in.) | 327mm (12 ⅞ in.) | 178mm (7 in.) |
| Tolerance | ± 13mm (± ½ in.) | Min. allowable length | ±13mm (± ½ in.) | ± 6mm (± ¼ in.) |
Description
Class 1 Rubber Insulating Sleeves | NOVAX®

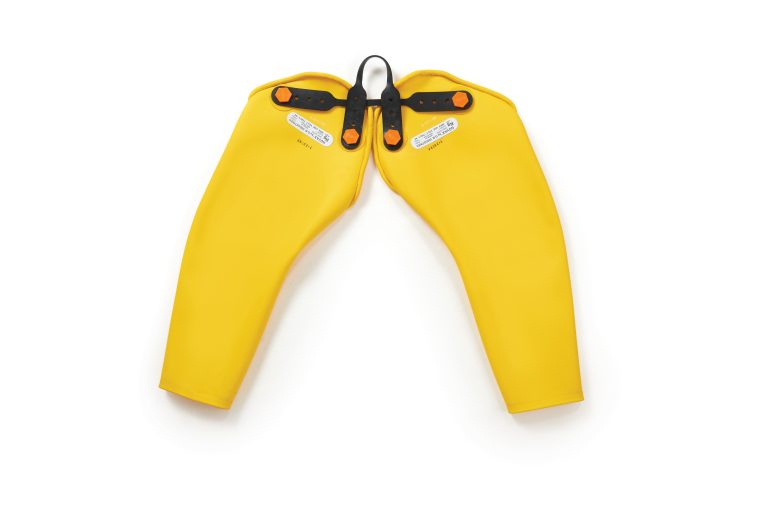

Class 1 Rubber Insulating Sleeves | NOVAX® – Curved Elbow provide reliable arm protection for professionals working with medium-voltage electrical systems. Engineered with a curved elbow design, these sleeves enhance ergonomic comfort and mobility while maintaining electrical insulation up to 7,500V AC and 11,250V DC.
Tested to meet ASTM D1051 and EN/IEC 60984 standards, these sleeves offer durable, flexible protection for energized environments.
Benefits
- Class 1 electrical insulation for medium-voltage work
- Curved elbow style for improved range of motion and comfort
- High-visibility yellow color for on-site awareness and compliance
- Single-piece construction for enhanced durability
- Fully compliant with ASTM D1051
Recommended Use
- Utility line work and substation tasks
- Industrial electrical system handling
- Tasks requiring reliable arm protection with enhanced comfort
